crydom快达53TP系列SSR
三相固态继电器; 负载 25A to 50A @ 48-530 VAC - SCR 输出- AC or DC 控制 - 跨零输出 (阻性负载) or 瞬时输出(感性负载) - LED 指示
产品编号 | 控制电压范围 | 大负载电流 | 工作电压范围 |
A53TP25D | 90-280 VAC | 25 Amps | 48-530 VAC |
A53TP25D-10 | 90-280 VAC | 25 Amps | 48-530 VAC |
A53TP50D | 90-280 VAC | 50 Amps | 48-530 VAC |
A53TP50D-10 | 90-280 VAC | 50 Amps | 48-530 VAC |

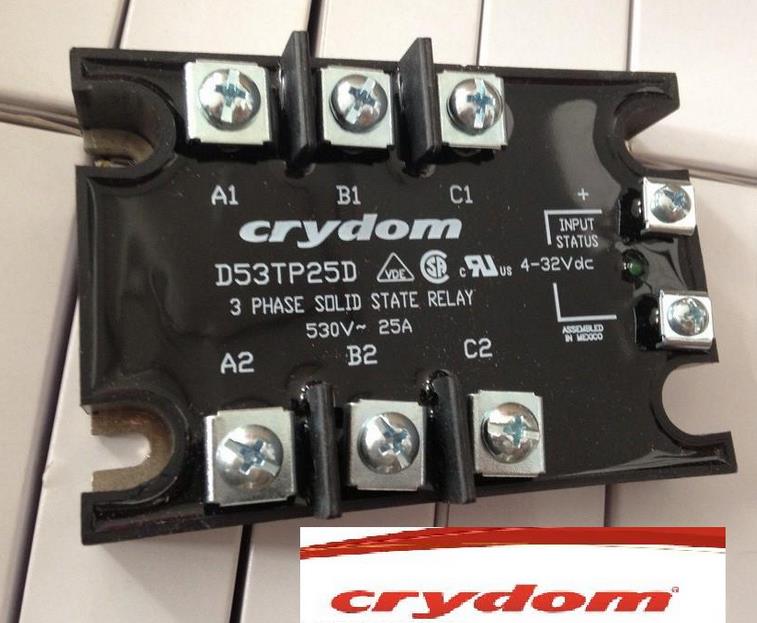

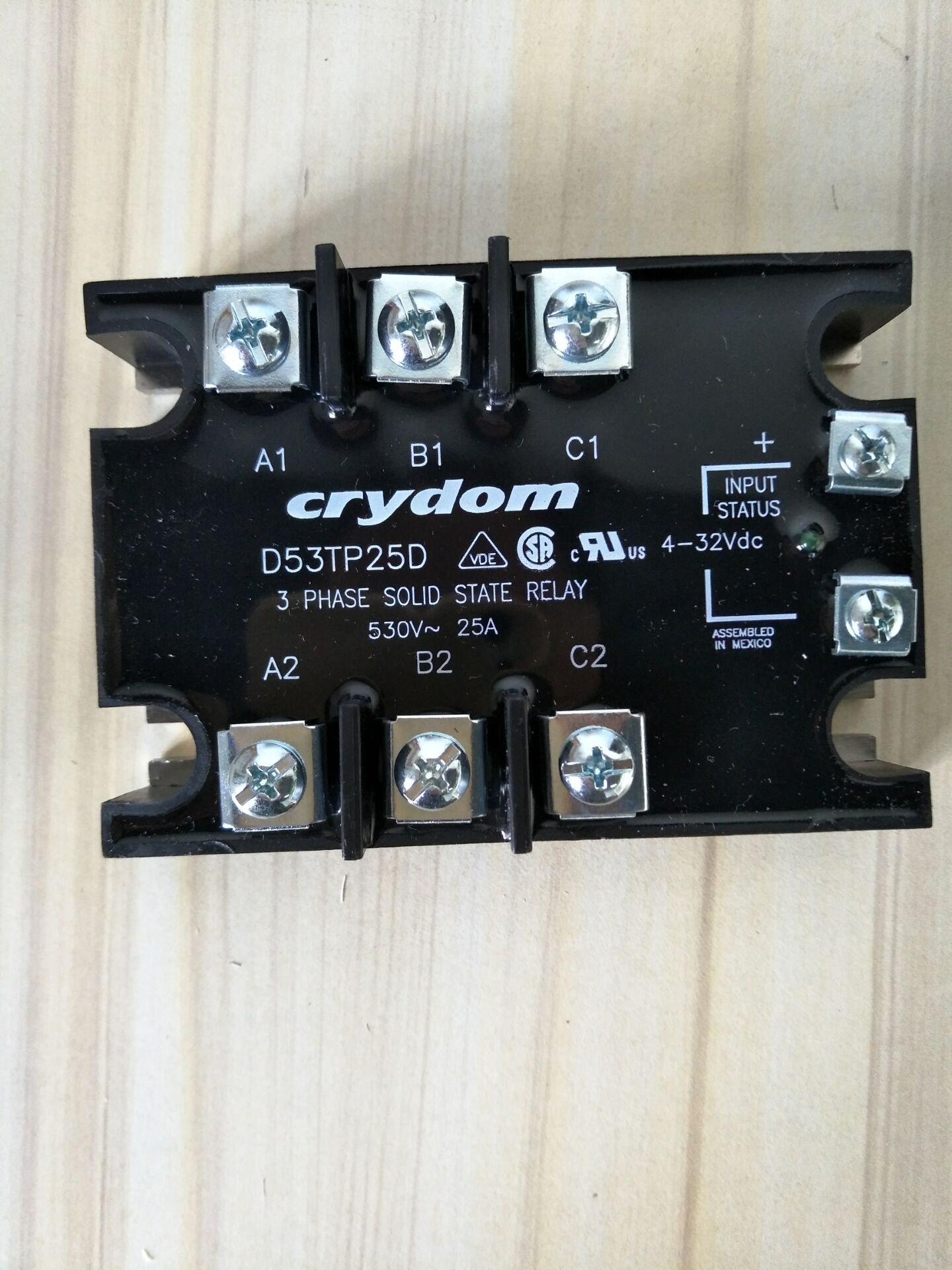

D53TP25D | 3-32 VDC | 25 Amps | 48-530 VAC |
D53TP25D-10 | 3-32 VDC | 25 Amps | 48-530 VAC |

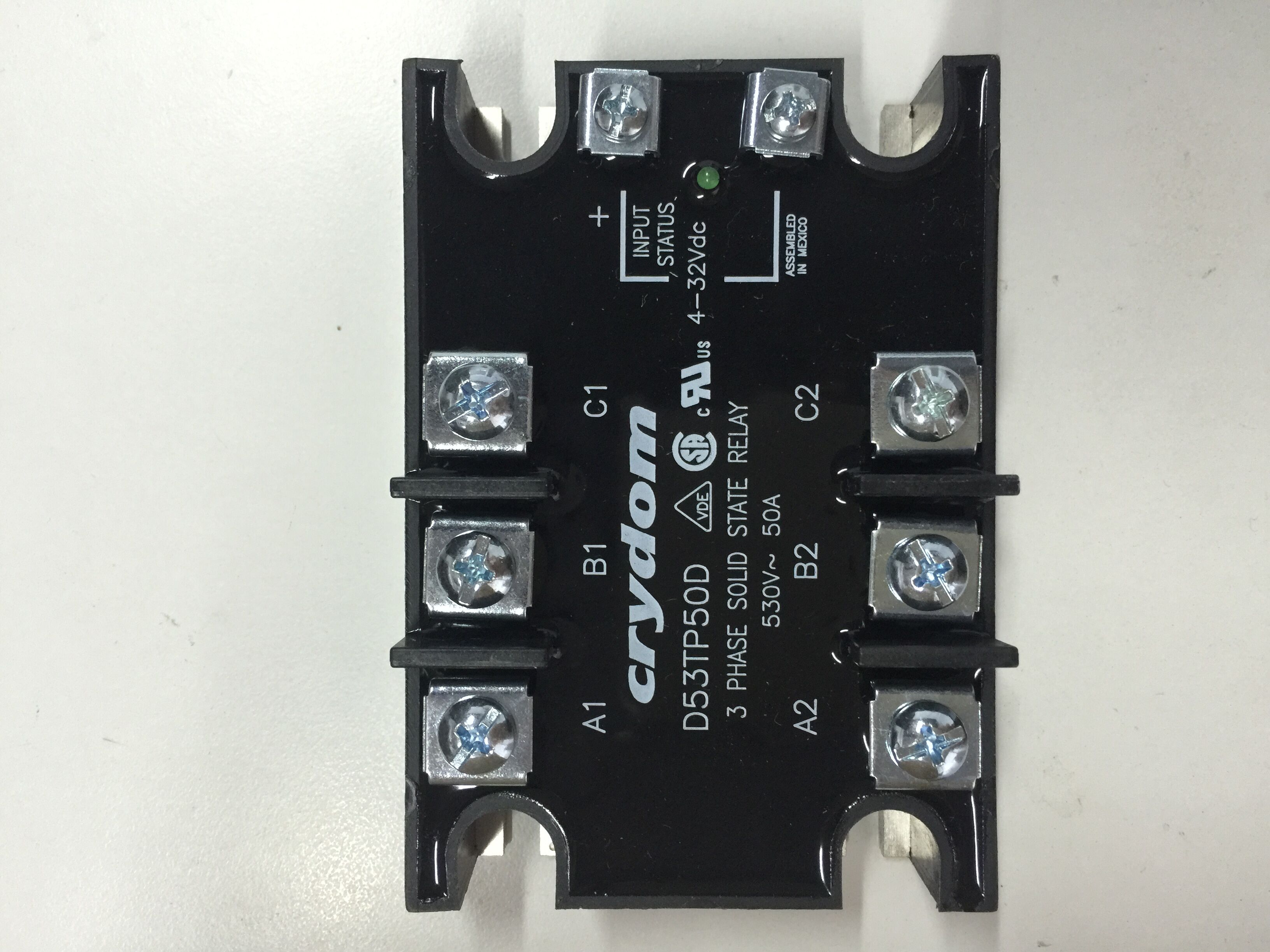

D53TP50D-10 | 3-32 VDC | 50 Amps | 48-660 VAC |
